Product Features

1. Main specifications

Pixel array: 192 * 192

Collection area: 9.6 * 9.6 mm2

Sensor size: 11.8 * 12.8 mm2

Resolution: 508DPI

Grayscale level: 8 bits

Interface method: SPI

Built-in clock: 32MHz

Metal ring: decoration

Finger pressing direction: 360 degrees, any direction

Module interface: FPC Gold Finger

Special coating process, supporting 5H hardness anti-interference: ESD protection circuit, reset circuit, anti noise circuit

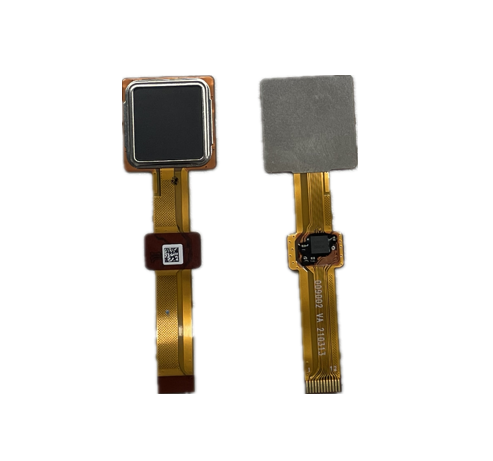

BF92192MF2 fingerprint module is a highly sensitive capacitive press type fingerprint recognition module.

2. Special coating technology can be used on the surface, which has superior anti-static, wear-resistant, and corrosion-resistant properties.

3. Combining excellent fingerprint recognition algorithms with mature application software, it can provide excellent user experience for fingerprint industry applications.
